WARELB split phase pure sine wave inverter is of excellent quality and has multiple functions. It is equipped with LCD display, wireless remote or wired remote and sparks of electricity proof.
https://www.powerreliable.com/600w-inverter/split-phase-inverter/2-phase-power-inverter-48-volt.html
This WZRELB 6000W 24V Pure Sine Wave Inverter, 24 Volt DC to AC 120V 240V Split Phase Power Inverter is built with a very good quality construction and tight wire inlets/ outlet connections that hold the wires securely and safely. The housing of the inverter is a hard iron shell, sturdy and durable, offering good rigidity and good heat dissipation, which can maximize the protection of internal components from damage.

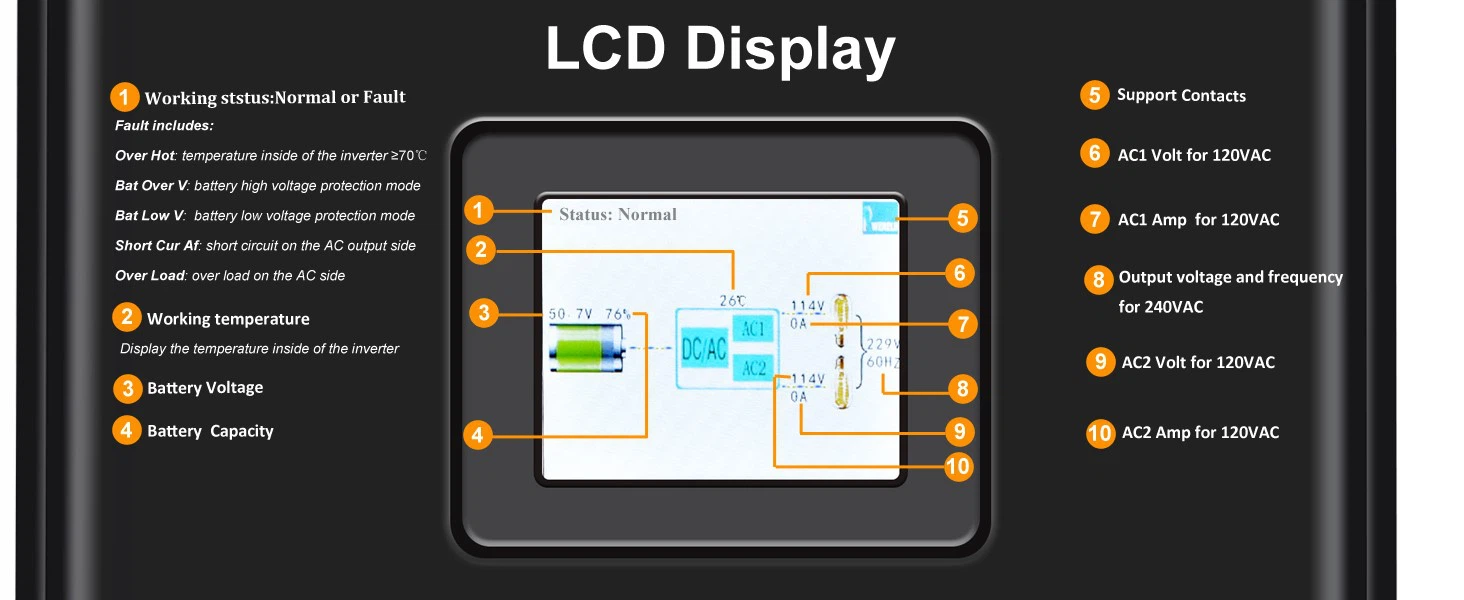

The LCD screen on the unit shows a diagram of the outlet- power flow when turned on- either with the remote or the switch on the end of the inverter- and it is easy to see. The LCD display help monitor power usage with no effort. It for both DC volt and AC volt which makes the power usage clear. Keeping track of voltage changes in real time , this is a good backup power supply for off grid system or emergency like power failure.
In addition, WZRELB split-phase pure sine wave inverter is equipped with wired remote controller and wireless remote. The former allows to switch the inverter ON/OFF remotely within 16ft while the latter allows to switch the inverter ON/OFF remotely within 100ft in room and 150ft in open area for distant operation without leaving your cozy zone.
This unit is being used in a dedicated function to supply power to a deep 220 volt-3/4 HP water pump controlled by a pool pump timer and the inverter draws 24-volt DC power from 4-CR 430 AH-6-volt batteries that are charged with 4-100-watt solar panels and a charge controller to keep the batteries from overcharging. It's recommended to connect 300AH and above power of battery to the 6000w 24v split phase inverter, which can maximize the ability of the inverter's operating load.
About the wiring of DC panel, firstly connect the battery bank first (in parallel or series), and then please trace the negative side of the battery and hook up the cables to the black negative on the inverter. Second, contact the other side of red cable to the Spark-Proof nut and wait for 3-5 Seconds. At last, hook up the positive cables to the red positive on the inverter. The Spark-Proof nut is greatly reduced the probability of security accidents. The hardwire terminal has 4 wire, 6000 Watts continuous output power, and AC output is pure sine 120/240V (60Hz). There are 3 connection formulas: L1+N=120Vac (3000w max), L2+N=120Vac (3000w max), L1+L2=240Vac (6000W max). WZRELB split-phase pure sine wave inverter supports 120VAC and 240VAC output at the same time, up to 91.6% efficiency. The other 3 wire is for 240v output. L for live, N for neutral, G for ground, the formula is L+N=240Vac ( 6000W Max). WZRELB 6000w 24v split-phase pure sine wave inverter can be customized. After adding a frequency conversion switch, the frequency can be converted between 50Hz and 60 Hz, but just by the way of manual operation.
WZRELB 6000w 24v split phase pure sine wave inverter is very functional, so that it can meet the needs of most people. It not only can provide power for appliances, but also can protect and extend the service life of itself and appliances to the greatest extent.
