Dual Voltage Inverter

Dual Voltage Inverter Manufacturer

Reliable Electric dual voltage inverters are designed for customers who need greater flexibility in battery input or output power configuration. Our product range helps buyers reduce model selection errors, simplify inventory planning and support wider application needs across RV, backup, off-grid and mobile power systems

What Are The Applications Of Auto-Detected Dual Voltage Input Inverter?

RV and Recreational Vehicle On-Board

This pure sine wave inverter provides stable AC power for RV on-board appliances from vehicle batteries, with surge capacity and full safety protections.

Commercial and Engineering Vehicle Operation

This inverter delivers reliable AC power for tools and equipment on commercial and engineering vehicles, with wide adaptive voltage input and rugged safety protections.

Marine and Watercraft

This inverter supplies safe, stable AC power for marine on-board appliances and navigation equipment, with low-interference pure sine wave output.

Household Daily Use and Power Outage Emergency Backup

This inverter acts as a reliable home emergency backup power source, powering essential household appliances during grid outages.

Office and Small Commercial Venue Backup

This inverter provides emergency backup power for office and small commercial equipment, preventing work and business interruptions during power cuts.

Outdoor Camping and Field Operation

This inverter delivers portable off-grid AC power for outdoor camping and field operations, compatible with most consumer electronics.

Industrial Small Equipment and Electric Tool

This inverter powers off-grid industrial small equipment and electric tools, with high surge capacity for motor load start-up.

Laboratory and Precision Electronic Equipment

This inverter delivers clean, low-distortion pure sine wave AC power for lab precision instruments, eliminating interference and measurement deviations.

Inverter Specification

Specification Item	Details
Rated Continuous Power (Optional)	1000W / 1200W / 1500W / 1800W / 2000W / 2500W / 3000W / 3200W / 3500W / 4000W / 5000W / 6000W / 7000W / 8000W
Surge Output Power	2 × the rated continuous power
Standby Input Power	300W~800W: <10W 1000W~2000W: <15W 2500W~3000W: <30W 3500W~4000W: <35W 5000W~8000W: <40W
DC Input Voltage (Auto-Adaptive)	Auto 12V/24V, Auto 24V/36V, Auto 36V/48V, Auto 48V/60V/72V, Auto 60V/72V/96V
AC Output Voltage (Nominal, Optional)	100V / 110V / 120V / 220V / 230V / 240VAC
AC Output Frequency (Optional)	50±2Hz / 60±2Hz
AC Output Waveform	Pure Sine Wave (grid-quality)
Rated Conversion Efficiency	85%
Ambient Operating Temperature Range	0°C-40°C (32°F-104°F)
Cooling Method	Intelligent temperature controlled fan
Core Protection Functions	Input low voltage protection, Input high voltage protection, overload protection, overcurrent protection, short circuit protection, battery reverse connection protection, overtemperature protection, built-in fuse protection
Dielectric Voltage Withstand	Input end to shell: 1000VAC (50Hz, 1min≥1.5mA) Output end to shell: 1000VAC (50Hz, 1min≥1.5mA)
Insulation Resistance	Input end to shell: >20MΩ (1000VDC) Output end to shell: >20MΩ (1000VDC)

How Does An Auto-Detected Dual Voltage Input Inverter Work And What Is Its Basic Principle Of Operation?

Its core function is to convert low-voltage direct current (DC) stored in batteries into standard, grid-quality alternating current (AC) to power various household, commercial, vehicle-mounted and industrial AC appliances. Its operation relies on advanced power electronic conversion technology, Sinusoidal Pulse Width Modulation (SPWM) control, and intelligent chip management, with a comprehensive built-in protection system for safe and stable operation.

Core DC-to-AC Conversion: SPWM-Driven Pure Sine Wave Generation
The fundamental goal of an inverter is to convert fixed-polarity DC power into periodically reversing AC power with a standard frequency (50Hz/60Hz) and voltage (100V-240VAC).

Two-Stage Power Conversion Topology
Given the inverter's low-voltage DC input (12V to 96V, auto-detected) and high-voltage AC output, it uses a two-stage power conversion topology to achieve efficient and stable energy conversion.

Intelligent Control and Protection Mechanism
The inverter's built-in intelligent control chip realizes full-process closed-loop control and safety protection, which is a core part of its stable operation.

DC Input & Auto-Voltage Detection

The inverter receives DC power from the battery pack, and the intelligent chip automatically detects the input voltage in real time, dynamically adjusting working parameters and protection thresholds.

DC Boost Conversion

The low-voltage DC power is boosted to a high-voltage DC bus through the boost circuit, laying the foundation for subsequent DC-to-AC conversion.

SPWM Inversion Control

The high-voltage DC is converted into an AC sine wave through the full-bridge inverter circuit, driven by high-frequency Sinusoidal Pulse Width Modulation technology.

Filtering & Pure Sine Wave Output

The LC filter circuit removes high-frequency harmonics, outputting a smooth, grid-quality pure sine wave AC power for the load.

Real-Time Protection & Closed-Loop Adjustment

The intelligent chip monitors voltage, current, temperature and other parameters in real time, triggering corresponding protection mechanisms when abnormalities are detected.

12 5

What Is An Auto-Detected Dual Voltage Input Inverter And How Does It Differ From Other Inverters?

Unlike conventional fixed single DC input inverters, an auto-detected dual voltage input inverter automatically adapts to multiple DC inputs. It prevents equipment damage from voltage mismatch, simplifies system setup and replacement, cuts off-grid system costs, solves the "one inverter for one voltage" pain point, and boosts portability with cross-system compatibility. It also has full safety protections and grid-grade pure sine wave output, fitting all AC loads from home appliances to precision electronics.

DC Input Voltage Parameter Reference

DC Input Voltage	DC Input Voltage Range	High Battery Shut Down Range
12V	10~15VDC	15V
24V	20~30VDC	30V
36V	30~45VDC	45V
48V	40~60VDC	60V
60V	48~75VDC	75V
72V	60~90VDC	90V
96V	80~120VDC	120V

What Are The Protections For This Dual Voltage Input Pure Sine Wave Inverter?

Adaptive Input Over/Undervoltage Protection
Auto-detected protection thresholds to match the detected input voltage, shutting down output and triggering alarms for out-of-range battery voltage.

Output Overload & Overcurrent Protection
Cuts off output and triggers alerts to prevent component burnout from excessive load or current.

Output Short Circuit Protection
Instantly stops power output when a short circuit occurs, eliminating fire and circuit damage risks.

Battery Reverse Polarity Protection
Built-in DC fuses activate immediately to protect the inverter's main circuit from reversed battery connections.

Overtemperature Protection
Triggers thermal shutdown and alerts during overheating, paired with an intelligent temperature-controlled cooling fan.

Comprehensive Auxiliary Fault Protection
Covers external AC access, bus voltage errors, and circuit/data faults, with dedicated LCD fault codes for all abnormalities.

Why Choose Us

Quality Assurance

We have a rigorous quality assurance process in place to ensure that all our products meet the highest industry standards. Our team of quality analysts checks each inverter thoroughly before it is delivered to the client.

State-of-the-art Technology

We use the latest power conversion technology and tools to deliver high-performance products. Our team is well-versed in the latest industry advancements, including industry-leading auto-detected input voltage technology.

Customer Satisfaction

We are committed to delivering high-quality products and services that exceed our clients' expectations. We work closely with every client to ensure their power needs are fully met.

Competitive Pricing

We offer competitive pricing for our full range of inverters without compromising on quality. All prices are fully transparent, with no hidden charges or fees.

One-stop Service

We promise to provide you with the fastest reply, the best price, premium product quality, and the most complete after-sales service for all your power inverter needs.

Expertise and Experience

Our team of experts has years of industry experience in delivering reliable off-grid power solutions. We hire only top-tier professionals with a proven track record in power conversion technology.

How do I troubleshoot common issues with this inverter?

The inverter's LCD screen displays specific fault codes for most abnormalities, paired with corresponding buzzer alerts. Refer to the table below for quick identification and initial troubleshooting:

Fault Code	Fault Meaning	Core Troubleshooting Action
SC	Output short circuit	Turn off the inverter and all loads immediately, check AC output wiring and loads for short circuits, and remove faulty components before restarting
OC	Output overcurrent	Turn off the inverter, reduce the connected load, and check for internal short circuits or overcurrent faults in the load
OL	Output overload	Disconnect non-critical loads, and ensure total load power does not exceed the inverter's rated continuous power
OU	Battery overvoltage	Check if the battery voltage exceeds the inverter's allowable input range, and use a battery pack with a matching voltage
LU	Battery undervoltage	Recharge the battery pack immediately, and check for loose battery cable connections that cause voltage drops
OH	Overtemperature protection	Turn off the inverter to let it cool, ensure unobstructed vents/fans, and maintain at least 5cm (2 inches) of air space around the unit
E0	External power connected to output	Immediately disconnect utility grid, generator or other external AC power from the inverter's output to avoid permanent damage

Product Gallery

FAQ

Q: What type of inverter is this? Is it a pure sine wave or modified sine wave inverter?

A: This is a grid-quality pure sine wave inverter, which outputs the same smooth, low-distortion AC power as your household utility grid. Unlike modified sine wave inverters, it will not generate electrical noise, interference or voltage fluctuations, will not damage your appliances, and is fully compatible with all types of AC loads, especially sensitive electronics, inductive loads and precision instruments.

Q: What international certifications does this inverter have?

A: This inverter has passed CE, EMC, ROHS and FCC certifications, fully complying with the safety, electromagnetic compatibility and environmental protection standards of the European, American and global mainstream markets, and can be legally sold and used in most countries and regions around the world.

Q: What is the conversion efficiency of this inverter?

A: This inverter has a rated conversion efficiency of 85%, which can effectively reduce the power loss during DC to AC conversion, maximize the use of battery power, extend the power supply time of your battery pack, and reduce unnecessary energy waste.

Q: Does this inverter support automatic voltage detection? What DC input voltages does it support?

A: Yes, this is an auto-detected dual/multi voltage input inverter. It supports multiple auto-detected DC input combinations: Auto 12V/24V, Auto 24V/36V, Auto 36V/48V, Auto 48V/60V/72V, Auto 60V/72V/96V. It can automatically detect the voltage of the connected battery pack in real time, and dynamically adjust the working parameters and protection thresholds without any manual setting or hardware modification, which is more convenient and safer than single-voltage inverters.

Q: What rated continuous power options are available for this inverter?

A: We provide a full range of optional rated continuous power to meet different usage needs: 1000W, 1200W, 1500W, 1800W, 2000W, 2500W, 3000W, 3200W, 3500W, 4000W, 5000W, 6000W, 7000W, 8000W.

Q: What is the surge power capacity of this inverter? Why is surge power important?

A: This inverter has a 2x rated continuous surge power capacity (short-term output). Surge power is critical because inductive loads such as air conditioners, refrigerators, compressors, water pumps and motors require 5-10 times their rated power to start up. Our inverter's surge capacity can handle the instantaneous high power demand of these loads, ensuring they start and run smoothly without triggering overload protection.

Q: How do I choose the right power rating of this inverter for my appliances?

For resistive loads (such as electric cookers, incandescent lamps, heaters, etc. with power factor =1), choose an inverter with a rated power slightly higher than the maximum power of the load (e.g. 1000W inverter for an 800W electric cooker).
For inductive loads (such as refrigerators, air conditioners, pumps, motors, compressors, etc.), choose an inverter with a rated power 5-10 times higher than the rated power of the load, to cover the high start-up surge power.
For 24/7 continuous use, it is recommended to use only 70% of the inverter's rated power; for daily use, 80% of the rated power is recommended to extend the service life of the inverter.

Q: What appliances can this inverter power?

A: This inverter can power almost all household and commercial AC appliances, including:

Daily household appliances: LED lights, TVs, computers, washing machines, refrigerators, microwave ovens, electric cookers, hair dryers, kitchen small appliances, etc.
Inductive loads: air conditioners, water pumps, various motors, compressors, packaging machines, etc.
Portable devices: mobile phones, projectors, audio equipment, electric drills, hand tools, digital products, etc.
Precision instruments: laboratory testing equipment, medical devices, etc.

Q: Can this inverter run sensitive electronics like computers, TVs and precision instruments?

A: Absolutely yes. Its pure sine wave output is identical to household grid power, with no harmonic interference, voltage fluctuations or electrical noise. It will not cause screen flickering, data loss, measurement deviation or equipment damage, which is completely different from modified sine wave inverters that are easy to interfere with sensitive electronics.

Q: How to install and connect this inverter correctly?

A: Follow these steps for safe installation:

Make sure the inverter's power switch is in the OFF position before any connection.
Connect the inverter to a fully charged battery pack: connect the battery positive to the inverter's positive terminal (red), and battery negative to the inverter's negative terminal (black). For 60VDC and higher versions, use the spark-proof screw for pre-charging before connecting the positive cable.
Connect your electric appliances to the inverter's AC output sockets or wiring terminals.
Turn on the inverter's power switch (the blue LED lights up to indicate normal power-on), then turn on your appliances.
When finished, turn off all appliances first, then turn off the inverter's power switch.

Q: What size of battery cables and fuses should I use with this inverter?

A: For our models, we include 2 battery cables and fuses with your purchase. The exact required cable gauge depends on your inverter's power, DC input voltage, cable run length, and connected load specifications. For custom configurations, always refer to the official AWG wire gauge ampacity chart.

Q: Can I connect this inverter directly to solar panels or a solar charge controller?

A: No, this inverter cannot be directly connected to solar panels or solar charge controllers. It must only be connected to a fully charged battery or battery pack with stable voltage. Direct connection to solar panels will cause unstable input voltage and permanent damage to the inverter.

Q: Can I connect multiple inverters in series or parallel for more power?

A: Strictly no. You cannot wire the AC output terminals of multiple units in series or parallel to get double the power output. This inverter cannot synchronize its AC phase, frequency and waveform with another inverter or external AC source. Any unauthorized connection will cause immediate irreversible inverter failure, severe fire hazards, and will completely void your product warranty. For higher power needs, select a single inverter with a matching continuous rated power from our full product lineup.

Q: Can this inverter be connected to the utility grid power or a generator?

A: Under no circumstances should this inverter be connected to utility grid AC distribution wiring, even if the inverter is switched off. Connecting to grid power or a generator will cause reverse AC power input, which will instantly damage the output module of the inverter, and may cause fire and safety hazards. It cannot be connected to any electrical breaker panel/load center that is also powered by utility power or a generator.

Q: What is the recommended operating environment for this inverter?

A: This inverter is for indoor use only. Please install it in a cool, clean, dry and well-ventilated place, close to the battery bank to avoid voltage drop in the cables. Keep at least 5cm (2 inches) of air space on all sides of the inverter for heat dissipation, and the ambient operating temperature should be between 0°C-40°C (32°F-104°F). Do not expose it to water, rain, snow, spray, flammable gases or high temperatures exceeding 40°C.

Q: What safety protection functions does this inverter have?

A: This inverter is equipped with a comprehensive full protection system, including: input low voltage protection, input high voltage protection, overload protection, overcurrent protection, short circuit protection, battery reverse connection protection, over temperature protection, and built-in fuse protection. When an abnormality is detected, it will trigger the corresponding protection, buzzer alarm and display the fault code on the LCD screen to protect the inverter and your appliances.

Q: What do the fault codes on the inverter's LCD display mean?

A: The core fault codes and their meanings are as follows:

SC: Output short circuit (1 beep, 2s pause, loop)
OC: Output overcurrent (2 beeps, 2s pause, loop)
OL: Output overload
OU: Battery overvoltage (3 beeps, 2s pause, loop)
LU: Battery undervoltage (4 beeps, 2s pause, loop)
OH: Overtemperature protection (5 beeps, 2s pause, loop)
E0: External power connected to output line

Q: What happens if I connect the battery polarity in reverse?

A: If the input polarity is reversed, the DC fuse(s) inside the inverter will blow immediately, and may also cause permanent damage to the inverter. Important note: Damage caused by reverse polarity connection is not covered by the warranty. Please always check the polarity before connecting the battery.

Q: Why does the inverter's housing get hot during operation? Is it safe?

A: It is normal for the inverter's housing to become warm during operation, and it may reach up to 60°C (140°F) under extended high power operation. The inverter is equipped with an intelligent temperature-controlled fan for heat dissipation, and has a complete over temperature protection function, which will automatically shut down when the temperature is too high. Please ensure at least 5cm of air space on all sides, and keep it away from materials that may be affected by high temperatures during operation.

Q: What type of battery should I use with this inverter?

A: We recommend using a deep cycle discharge type battery for this inverter. Vehicle starting batteries are only designed for short-term high current engine starting, not for constant deep discharge, and regular use with the inverter will shorten their service life. If you need to run the inverter for a long time frequently, please connect it to a separate deep cycle battery.

Q: How long can this inverter power my appliances on a single battery charge?

A: The power supply time depends on the power of your AC appliances and the capacity of your battery pack. The theoretical calculation formula is: Working Time (Hours) = Battery Voltage (V) × Battery Capacity (Ah) × 0.8 (Battery Discharge Coefficient) × 0.85 (Inverter Conversion Efficiency) ÷ Load Power (W). For example: A 12V 100Ah battery powers a 300W appliance, the theoretical working time = 12×100×0.8×0.85÷300 ≈ 2.72 hours.

Q: How to connect batteries to match the inverter's input voltage?

A: There are 3 common connection methods:

Series Connection: Connect batteries in series to increase the total voltage (the Ah capacity remains unchanged). For example, 4 pcs of 6V 200Ah batteries connected in series form a 24V 200Ah battery bank.
Parallel Connection: Connect batteries in parallel to increase the total Ah capacity (the voltage remains unchanged). For example, 4 pcs of 12V 100Ah batteries connected in parallel form a 12V 400Ah battery bank.
Series-Parallel Connection: Combine series and parallel to get the required voltage and capacity at the same time.

Q: What is the warranty policy for this inverter?

A: We provide a 1-year warranty for this inverter starting from the date of purchase, under the following conditions: 1. The defect is caused by material or production defects, not improper use, incorrect installation or damage caused by negligence (the warranty will be void in case of improper use). 2. The warranty claim is made within the warranty period, and a valid purchase proof is required. 3. For products confirmed to be within the warranty scope, the distributor will repair or replace the product at its discretion. 4. The warranty does not cover consumable parts such as the external case, fuses, connectors, and input leads.

Q: My inverter has no AC output, what should I do?

A: Please follow the steps below to troubleshoot: 1. Check if the battery voltage is within the allowable input range, and if the battery cable connections are firm and correct. 2. Check if the load exceeds the rated power of the inverter, reduce the load and try again. 3. Check if the vents and fans are blocked, and if there is sufficient ventilation for heat dissipation. 4. Check the fault code displayed on the LCD screen to confirm the specific abnormal condition. Warning: Do not open or disassemble the inverter without the manufacturer's permission, otherwise the warranty will be void.

Q: Can I disassemble and repair the inverter by myself if it breaks down?

A: No. Do not open or disassemble the inverter without the manufacturer's permission. Unauthorized disassembly will void the product warranty, and may also cause electric shock, fire and other safety hazards. If the inverter fails, please contact our after-sales team for professional guidance and processing.

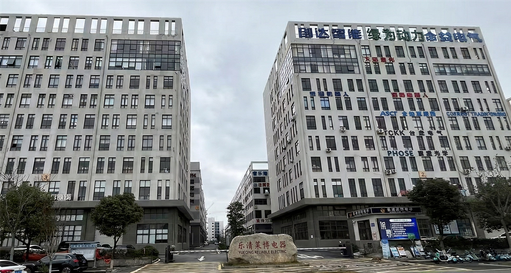

Our Factory
