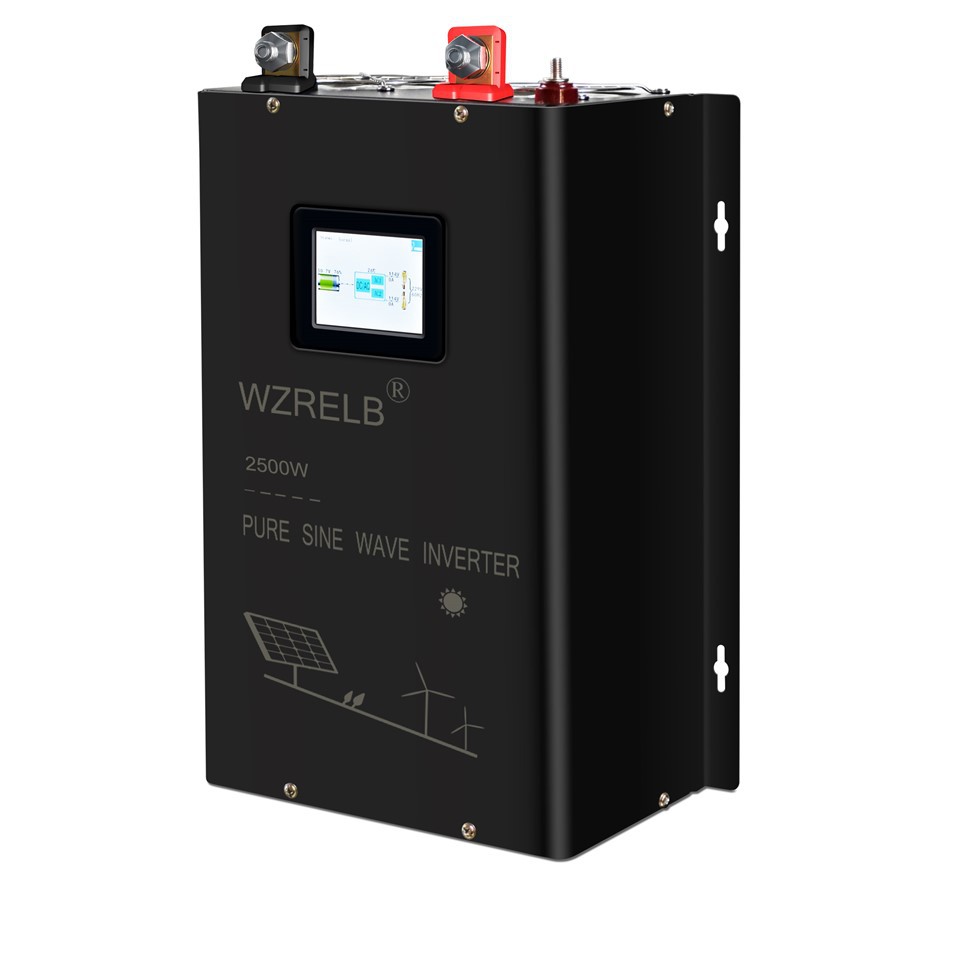

WZRELB SPT Series 2500W Split Phase Pure Sine Wave Inverter

Name: China Customized 2500W Split Phase Pure Sine Wave Inverter Manufacturers Suppliers Factory
Brand: Reliable
SKU: 303718464

[120V/240V SPLIT PHASE OUTPUT] - Built for split phase applications with dual 120V circuits and 240V output capability. This helps users power common household-style loads, tools, appliances, pumps, and small equipment from one inverter system.

[2500W RATED POWER] - Provides stable 2500W continuous output for off-grid, RV, workshop, and backup use. Pure sine wave output helps improve compatibility with electronics and motor-driven loads.

[STANDARD VERSION] - This standard version focuses on core inverter performance for split phase power systems and does not include an extra remote controller.

[MULTIPLE DC INPUT OPTIONS] - Supports 24V, 36V, 48V, 60V, 72V, 96V, and 110V DC versions to match different battery banks, solar storage systems, and off-grid power projects.

[PURE SINE WAVE + LCD DISPLAY] - Pure sine wave output helps improve compatibility with TVs, refrigerators, chargers, communication devices, and other sensitive electronics, while the built-in LCD screen helps users check system status more clearly.

Features

Real Split Phase Power

Supports L1 + N = 120V, L2 + N = 120V, and L1 + L2 = 240V. This structure is more suitable for North American split phase systems than common single-output inverters.

2500W Continuous Output

Delivers stable rated output for cabins, RVs, solar battery systems, workshops, and backup power systems that need reliable split phase AC power.

Standard Model

This standard version focuses on core inverter performance for split phase power systems and does not include an extra remote controller.

Built-in LCD Monitoring

The front LCD display helps users check running status, battery voltage, battery capacity, temperature, and output information during daily use.

Multiple Protection Design

Includes low voltage protection, overload protection, over voltage protection, over temperature shutdown, short circuit protection, and cooling fan support for safer long-term operation.

Flexible DC Battery Matching

Supports multiple DC input voltage versions, helping buyers match the inverter with existing battery banks, solar storage systems, and customized off-grid power setups.

lcd 2500WZ-2

Important Output Notes

Split Phase Output: Supports 120V / 240V AC split phase output for systems that need both 120V branch loads and 240V equipment support.

Rated Power: Total rated output is 2500W. Buyers should match cable size, battery capacity, and real load demand with the selected inverter model.

DC Input Options: Available in 24VDC, 36VDC, 48VDC, 60VDC, 72VDC, 96VDC, and 110VDC versions.

Version Type: This page is for the Standard Version based on the SPT 2500W split phase inverter platform.

Recommended Applications

RV and Camper Systems

Suitable for RV battery systems that need stable split phase output for daily appliances, tools, and backup use.

Off-Grid Solar Projects

A practical choice for cabins, workshops, farms, and remote solar power stations using different battery voltage platforms.

Home and Backup Power

Can support lighting, TVs, chargers, refrigerators, pumps, communication devices, and selected household loads within the rated power range.

North American Split Phase Loads

Useful for users who need both 120V branch output and 240V output from one inverter platform.

Frequently Asked Questions

What is the main difference between the standard, wired remote, and wireless remote versions?

A: The standard version focuses on the inverter itself, the wired remote version adds a cable-connected LCD remote monitor and switch, and the wireless remote version adds convenient handheld remote on/off control. This page is for the 2500W Standard Version.

Q2: Can this 2500W split phase inverter supply both 120V and 240V output?

A: Yes. It supports 120/240V AC split phase output. Users can run 120V loads and 240V loads when the wiring method and the total connected load remain within the rated inverter capacity.

Q3: What DC battery voltages are available?

A: This SPT series model supports 24VDC, 36VDC, 48VDC, 60VDC, 72VDC, 96VDC, and 110VDC versions, which helps buyers match different energy storage and off-grid battery systems.

Q4: What kind of devices can a 2500W pure sine wave split phase inverter run?

A: It can support many loads such as TVs, chargers, lighting, pumps, refrigerators, tools, and other appliances within the rated output range. Actual compatibility depends on starting current, continuous wattage, and installation conditions.

Q5: Why choose pure sine wave output for off-grid systems?

A: Pure sine wave output is closer to utility power, so it is generally a better choice for electronics, digital displays, chargers, and many motor-driven or sensitive loads that need cleaner AC power.

Hot Tags: 2500w split phase pure sine wave inverter, China 2500w split phase pure sine wave inverter manufacturers, suppliers, factory

Specification Data
Model		SPT-2500 Standard Version
Input	DC Voltage	24V / 36V / 48V / 60V / 72V / 96V / 110V DC
	Voltage Range	Please confirm the exact input voltage version before ordering.
	No Load Current Draw	Please confirm based on selected DC version
	Efficiency	>90%
	DC Connector	Cables
Output	AC Output	120/240V AC Split Phase
	Rated Power	2500W
	Waveform	Pure Sine Wave
	Frequency	50Hz or 60Hz Optional
	AC Regulation	<3%
	Total Harmonic Distortion	THD < 5%
Protection	Low Voltage Protection	Available according to selected DC input version
	Over Load	Shut Off Output
	Over Voltage Protection	Available according to selected DC input version
	Over Thermal	Shut Off Output Automatically
	Short Circuit	Yes
	Cooling Ways	Cooling Fan
Environment	Working Temperature	Between -10°C and +50°C
	Working Humidity	20% ~ 90% RH Non-Condensing
	Storage Temperature	Between -30°C and +70°C
Others	Start	Soft Start
	Display	Built-in LCD Display
	Remote Function	No Extra Remote Controller
	Installation	Hardwire terminal support for split phase connection
	Version	Standard Version
Pack	Packing Type	Carton Packing
	Rated Power Note	Each 120V line shares the total inverter capacity, and the total connected load should remain within 2500W rated power.
	Model Note	Please confirm exact socket, frequency, and DC input version before order.
