【Split Phase Pure Sine Wave Power Inverter】Provides 2500 - 4000 watt true pure sine wave continuous power,Peak 5000 - 8000 watt,DC 24 / 48 volt to 120V / 240V AC split phase, high quality and stable output power ,50HZ / 60HZ. Ideal for sensitive loads appliances for Jobsite, RV, and Whole House Backup Emergency.

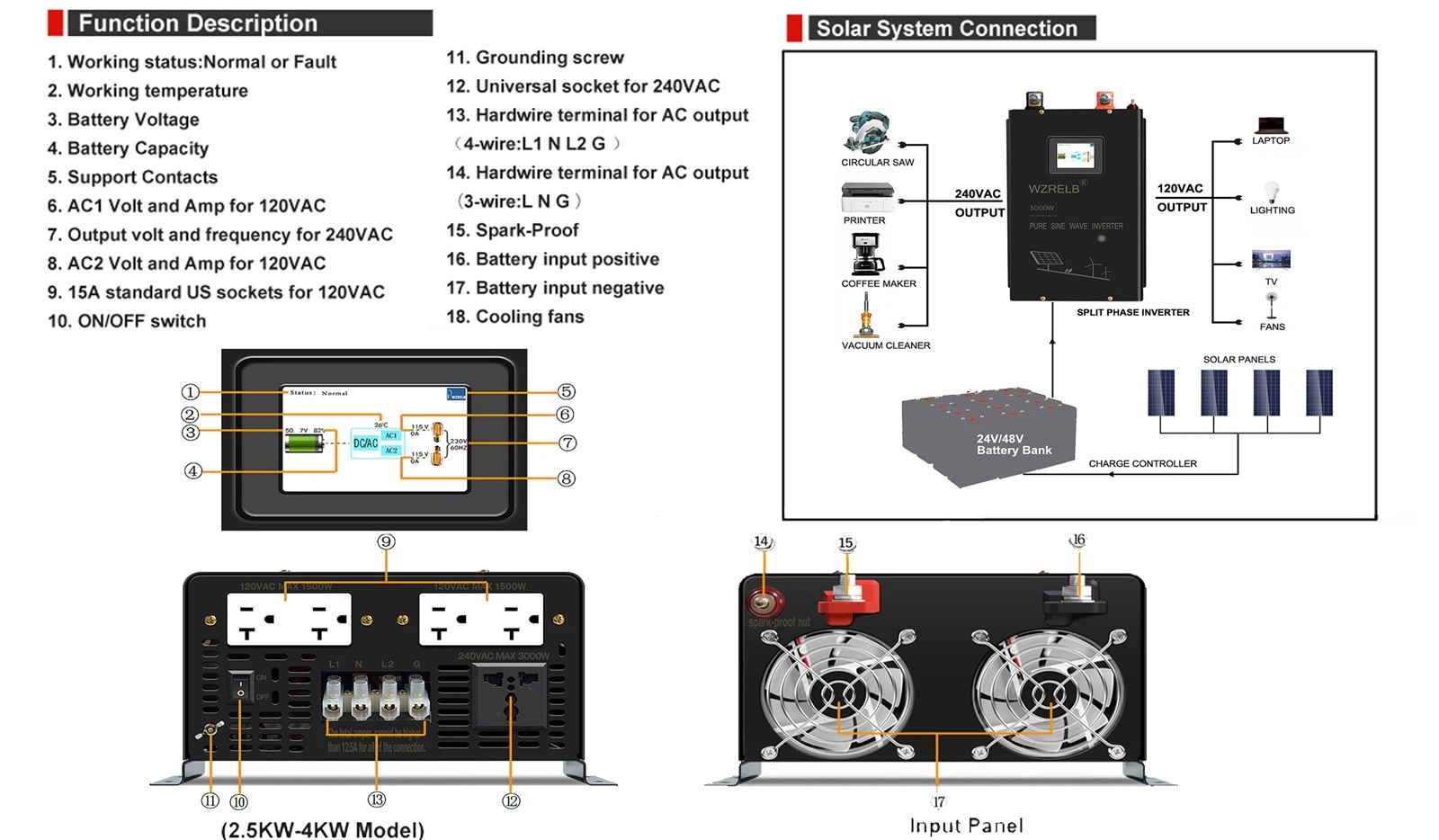

【Digital LCD Display】LCD Display for battery volt and capacity ,simultaneous tracking of 3 output circuits for volt and amper of dual 120V AC mode,volt and frequency of 240V AC mode , easily master the power inverter working status,a good source of backup power supply for off grid system or emergency like power failure.
【Multiple Outlets】Features 2 circuit 120v AC outputs with 2* dual US outlets ,1*240V AC hardwire terminal (L+N=240V) and 1* hardwire terminal(4-wire) with Multiple output modes (L1+L2=240V, L1+N=120V, L2+N=120V ).
【PROTECTIONS】 Temperature-controlled cooling fan, low and high voltage alarmutdown,multi-protections against overload, short circuit, over temperature, high voltage, low voltage, internally fused, battery reverse etc.
【Small size】 Compared with the same type of products, lighter weight is more advantageous, easy to transport, move and install.

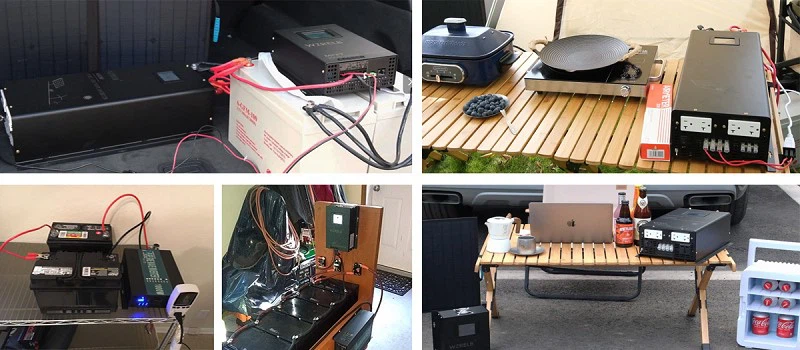

【APPLICATIONS】a must for off-grid live and Power Failure Emergency , compatible with AGM, gel, flooded, lead-acid and lithium-ion batteries, , ideal for home, cabin, mobile business, RV, trailer, semi-truck, boat, and more.
【WHAT YOU GET】 1 inverter unit, 1 User's Manual,cables,fuse, 12 months warranty and lifetime tech support each.
↓↓↓User-----------------
Hot Tags: 24v/48vdc split phase inverter 120v/240vac, China 24v/48vdc split phase inverter 120v/240vac manufacturers, suppliers, factory, Split Phase Pure Sine Wave Inverter, 2 Phase Power Inverter 48 Volt, Split Phase Inverter, Split Phase Inverter 120 240 Off Grid, 24V 48VDC Split Phase Inverter 120V 240VAC
| Model | SPT-2500 | SPT-3000 | SPT-3500 | SPT-4000 | |||||
| Input | DC Voltage | 24V or 36V or 48V(Optional) | |||||||
| Voltage Range | 21-30VDC or 30~45VDC or 42-60VDC | ||||||||
| No Load Current Draw | <30W | <40W | |||||||
| Efficiency | > 91.6% | ||||||||
| DC Connector | Cables | ||||||||
Output |
AC Voltage | 120V | 240V | 120V | 240V | 120V | 240V | 120V | 240V |
| Max Power | 1250W | 2500W | 1500W | 3000W | 1750W | 3500W | 2000W | 4000W | |
| Frequency | 50Hz or 60Hz(Optional) | ||||||||
| Waveform | Pure Sine Wave | ||||||||
| AC Regulation | 3% | ||||||||
| Protection | DC input voltage range | 20~30VDC(24V)/30~45VDC(36V)/40~60VDC(48V) | |||||||
| Low Voltage Shut Down | 19.5VDC± 1V (24V) / 29.5VDC± 0.5V (36V) / 42VDC± 1V (48V) | ||||||||
| Over Load | Shut Off Output | ||||||||
| Over Voltage Shut Down | 30VDC (24V) / 45VDC (36V) / 60VDC (48V) | ||||||||
| Over Thermal | Shut Off Output Automatically | ||||||||
| Fuses | Short Circuit | ||||||||
| Environment | Working Temperature | Between - 10C and +50C | |||||||
| Working Humidity | 20% ~ 91% RH non- condensing | ||||||||
| Storage Temperature | Between - 3 0 C and + 7 0 C | ||||||||
| Others | Start | Soft Start | |||||||
| Cooling Ways | Cooling Fan | ||||||||
| Total Harmonic Distortion | THD < 5% | ||||||||
| Pack | Machine size ( inch) | 14 .9 * 8.4 * 5. 3inch | |||||||
| Net Weight(kg) | 8.8KG | ||||||||
| Packing Type | Carton Packing | ||||||||
