Split Phase Inverter 120 240 Off Grid



Capacity: 20A-80A

Input Voltage Range: 12V/24V/48 Auto , 18V/36V Manual





• Rated power : 5000W -12000W

• Pure sine wave solar inverter

• 120V/240V AC split phase

• LCD Display for tracking battery volt and capacity ,both ampere of 120VAC mode and 240VAC mode

• Spark-proof design

• Built-in soft starter

• 9 Kinds of productions

• 50hz or 60hz (optional)

• Compatible with various batteries on the market





• Rated charge: 20A/40A/60A/80A

• Solar charge controller

• Rated voltage: 12V/24V/48 Auto , 18V/36V Manual

• Intelligent Touch Screen LCD display

• Low-voltage disconnection (LVD) function

• Overall self-test

• Electronic protection functions

• RS 485 Communication Interface

• Safe solar battery charger

• Fit for Gel Sealed Flooded and Lithium Battery

• PV≤170V





As the world continues to recognize the importance of renewable energy, solar power has become an increasingly popular source of electricity. Solar power systems are a great option for those looking to reduce their carbon footprint, decrease energy bills, and increase energy independence.



The SPT split-phase inverter can offers both 120v and 240v outputs. With up to 91.6% efficiency, this portable inverter is perfect for off-grid applications. The LCD display offers easy-accessible button operation, allowing users to monitor battery voltage and capacity, as well as adjust output amps based on different applications.

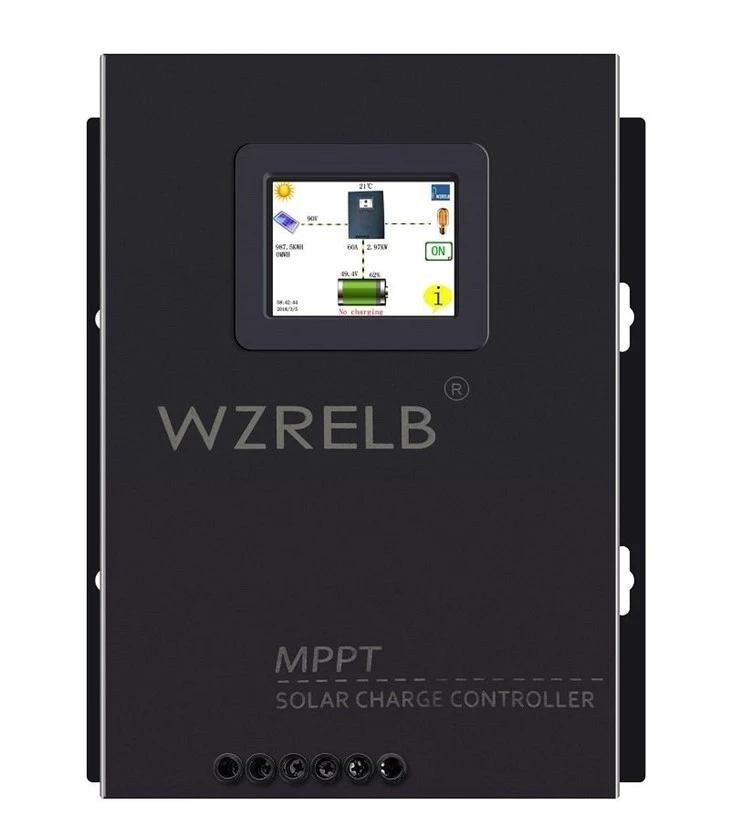

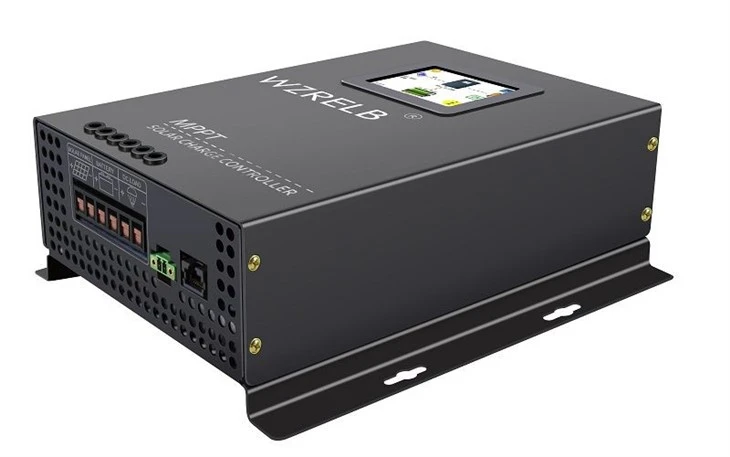

The MPPT solar charge controller is a powerful device that utilizes maximum power point tracking technology, lifting the solar tracking efficiency to 99%. This intelligent touch screen LCD display also comes with an RS 485 communication interface, making it easy to monitor and adjust solar charging parameters.



Solar energy systems typically include solar panels, inverters, batteries, and mounting hardware. They are ideal for those who want to harness the power of the sun without the hassle of designing and installing a custom system. This type of system can provide backup power during periods of low sunlight or can be used as a redundant source of power for critical applications.

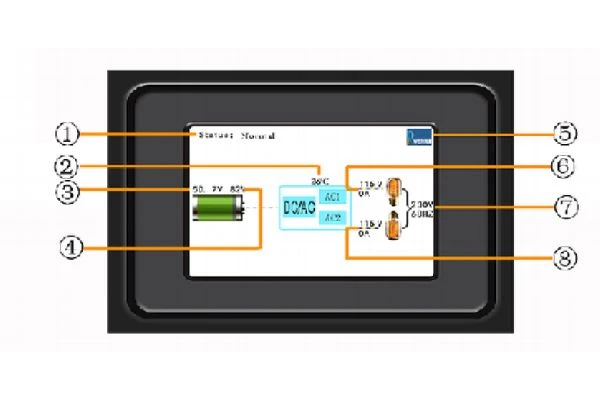

1. Working status:Normal or Fault

2. Working temperature

3. Battery Voltage

4.Battery Capacity

5.Support Contacts

6.AC1 Volt and Amp for 120VAC

7. Output volt and frequency for 240VAC

8. AC2 Volt and Amp for 120VAC

9. 15A standard US sockets for 120VAC

10. ON/OFF switch

11.Grounding screw

12. Universal socket for 240VAC 3000W MAX

13.Hardwire terminal for AC output(4 wires:L1 N L2 G )

14.Hardwire terminal for AC output(3 wires:L1 N L2 )

15.Spark-Proof

16.Battery input positive

17.Battery input negative

18.Cooling fans

19.On/off port

20.Remote port





1.Soar cell panel status

2.Input voltage solar panel

3.Charging current

4.Cumulative generating capacity

5.Battery voltage

6.Current time

7.Charging process status

8.Battery status

9.Information display

10.Battery capacity percentage

11.Charging power

12.Load control key

13.Load status

14.working temperature of controller build-in module

15.Mppt controller status

16.Manufacturer logo

17.Ambient temperature

18.PV terminals

19.Battery terminals

20.DC terminals

21.Remove temperature sensor

22.RS485 communication port

23.60*60mm power cooling fan
