↓↓↓Introduction(已改)-----------------
【Pure Sine Wave Inverter】Provides 1000 - 1500 watt pure sine wave, single phase, high frequency, ideal for RV, emergency home power supply back - up, car, vehicle, camp, industrial, etc.

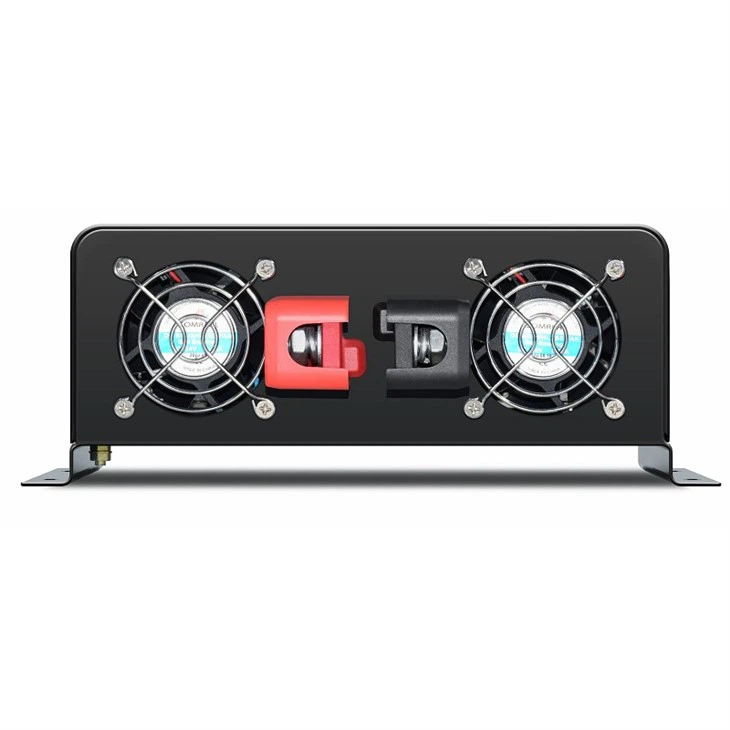

【Powerful Output】High quality material ensure the stable and full AC output. 25 Amp Max capacity, with 2* 120V AC outlets, 2*2.4 Amp USB ports, and 1* heavy-duty 120V AC 25 Amp hardwire terminal.
【Fully Safety Protections】Over voltage, Low voltage, Overload, Short circuit, Over heat, polarity reverse protection (fuse), Ground protection from leakage of electricity. Intelligent cooling fan works when the temp is over 66 degree Celsius.
↓↓↓User-----------------
Hot Tags: 48v inverter, China 48v inverter manufacturers, suppliers, factory, Pure Sine Power Inverter For Car, Inverter Pure Sine Wave with Dual AC Outlets, 12v Inverter, 48v Inverter, Car Inverter, Car Power Inverter Pure Sine Wave
| Specification Data | ||||||||||
| Model | U5-1000 | U5-1500 | U5-2000 | U5-2500 | U5-3000 | U5-3500 | U5-4000 | U5-4500 | U5-5000 | |
| Input | AC Output Voltage | 12V or 24V or 36V or 48V or 60V or 72V or 96Vor 110V | ||||||||
| DC Input Voltage Range | 10-15VDC or 21-30VDC or 30-45VDC or 42-60VDC or 50-75VDC or 60-90VDC or 75-115VDC or 90-135VDC | |||||||||
| No Load Current Draw | 1.2A | |||||||||
| Efficiency | > 90% | |||||||||
| DC Connector | Cables With Terminals | |||||||||
Output |
AC Output Voltage | 100/110/120VAC or 220/230/240VAC | ||||||||
| Continuous Power | 1000W | 1500W | 2000W | 2500W | 3000W | 3500W | 4000W | 4500W | 5000W | |
| Surge Power | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W | 9000W | 10000W | |
| Frequency | 50Hz or 60Hz | |||||||||
| Waveform | Pure Sine Wave | |||||||||
| AC Regulation | <3% | |||||||||
| Protection | Low Voltage Alarm | 9.5-10.5v / 19.5-21.5v / 29.5v-31.5v / 43-45v / 50.5-51.5v / 60.5-61.5v / 76-77v / 91-93v | ||||||||
| Low Voltage Shut Down | 9-10v / 18.5-20.5v / 29-30v / 41.5-42.5v / 50-51v /60-61v / 74-76v / 90v | |||||||||
| Over Load | Shut Off Output | |||||||||
| Over Voltage Shut Down | 15.5v / 30.5v / 45.5v /61.5v /75v / 90v / 115v / 135v | |||||||||
| Over Thermal | Shut Off Output Automatically | |||||||||
| Over Heat Protection | Cooling Fans Run When It's Over 120 F | |||||||||
| Cooling Fans | 2 | |||||||||
| Environment | Working Temperature | -10℃ TO 50℃ / -50℉ TO 122℉ | ||||||||
| Working Humidity | 20% ~ 90% RH non- condensing | |||||||||
| Storage Temperature | -30℃ TO 70℃ / -86℉ TO 158℉ | |||||||||
| Others | Start | Soft Start | ||||||||
| Total Harmonic Distortion | THD < 5% | |||||||||
| Pack | Machine size | 264 * 246 *94MM | 360 * 246 * 94MM | 467 * 246* 94MM | ||||||
| Net Weight | 3.6KG | 5.2KG | 7.9KG | |||||||
| Packing Type | Carton Packing | |||||||||
