↓↓↓Introduction(已改)-----------------

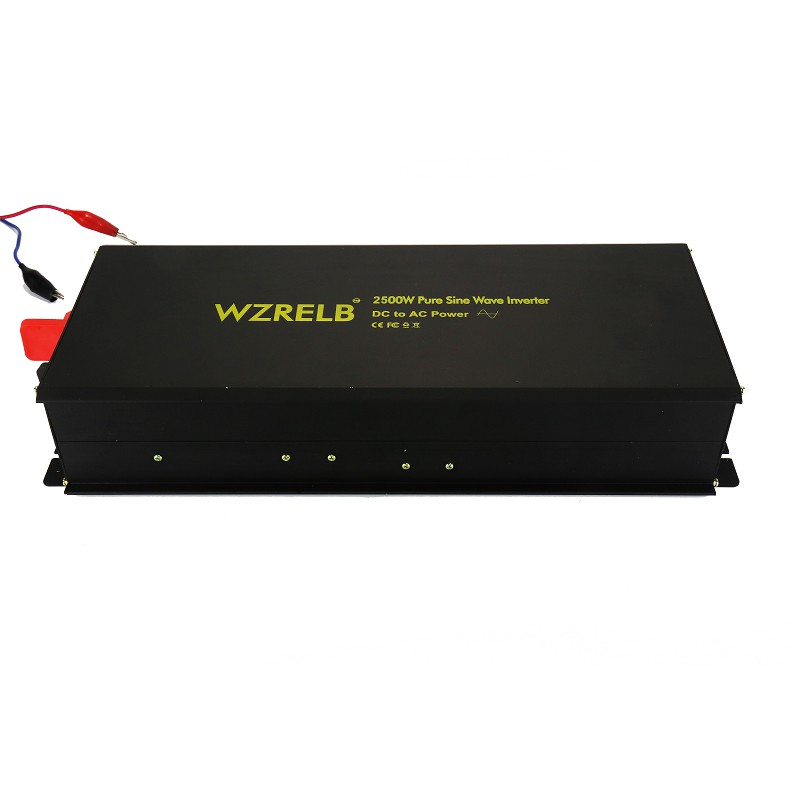

【Pure Sine Wave Inverter】2000 - 3000W rated power 4000 -6000W surge real pure sine wave inverter. The series is a multi-functional inverter with FULL SAFETY PROTECTION,come with two socket,quick and convenient.
【Good Quality】The vehicle inverter is made of high-quality and durable aluminum. Built-in intelligent cooling fan helps reduce heat and prevent shortages.
【Soft Starter Design】With soft starter built-in,reduces the instantaneous impact of inrush current to allow the AC voltage to rise smoothly, effectively extending the life of the appliance.
【All Around Protections】Under voltage alarm cut down protection, over voltage protection, reverse fuse protection, high volt cut off protection, Over current, Over load shut off protection, Short circuit fuses protection, Over thermal production.
【Home】Sufficient use for normal power supply for home, for refrigerator,air conditoners, TV, Computer,lights, fans microwave, ect.
【industrial】Can be used for industrial use such as drill, motor, pump,compressors,safeguard system ect.
↓↓↓Function Description-----------------
1 . Dual sockets
2 . DC input volt display
3 . AC output volt display
4 . Switch
5 . light indicator
6 . Cooling Fan
7 . Battery Positive Input
8 . Battery Negative Inpu
↓↓↓Connection-----------------
↓↓↓User-----------------
Hot Tags: 3000 watt power inverter pure sine wave, China 3000 watt power inverter pure sine wave manufacturers, suppliers, factory, 2500 Watt Pure Sine Wave Power Inverter, 4000 Watt Pure Sine Inverter Solar System, Sine Wave Inverter Power with USB Port, 3000 Watt Power Inverter Pure Sine Wave, Pure Sine Inverter with LED Display, Inverter 3000 Watt
| Specification Data | ||||||
| Model | AU2000W | AU2500W | AU3000W | |||
| Input | DC Voltage | 12V or 24V or 36V or 48V or 60V or 72V or 96V or 110V | ||||
| Voltage Range | 10-15VDC or 21-30VDC or 31-45VDC or 42-60VDC 50-75VDC or 60-90VDC or75v-115VDC or 90-135VDC | |||||
| No Load Current Draw | < 0.5A | |||||
| Efficiency | > 90% | |||||
| DC Connector | Cables With Clips or Car Adaptor | |||||
| Output | AC Voltage | 100/110/120VAC or 220/230/240VAC | ||||
| Continuous Power | 1000W | 1500W | 2000W | 2500W | 3000W | |
| Surge Power | 2000W | 3000W | 4000W | 5000W | 6000W | |
| Waveform | Pure Sine Wave | |||||
| Frequency | 50Hz or 60Hz | |||||
| AC Regulation | <3% | |||||
| Protection | Low Voltage Alarm | 9.5-10.5v / 19.5-21.5v / 29.5v-31.5v / 43-45v / 50.5-51.5v / 60.5-61.5v / 76-77v / 91-93v | ||||
| Low Voltage Shut Down | 9-10v / 18.5-20.5v / 29-30v / 41.5-42.5v / 50-51v /60-61v / 74-76v / 90v | |||||
| Over Load | Shut Off Output | |||||
| Over Voltage Shut Down | 15.5v / 30.5v / 45.5v /61.5v /75v / 90v / 115v / 135v | |||||
| Over Thermal | Shut Off Output Automatically | |||||
| Fuses | Short Circuit | |||||
| Environment | Working Temperature | Between -10°C and +50°C | ||||
| Working Humidity | 20%~90%RH non-condensing | |||||
| Storage Temperature | Between -30°C and +70°C | |||||
| Others | Start | Soft Start | ||||
| Cooling Ways | Cooling Fan | |||||
| Total Harmonic Distortion | THD < 5% | |||||
| Machine size(inch) | ||||||
| Machine weight(KG) | ||||||
