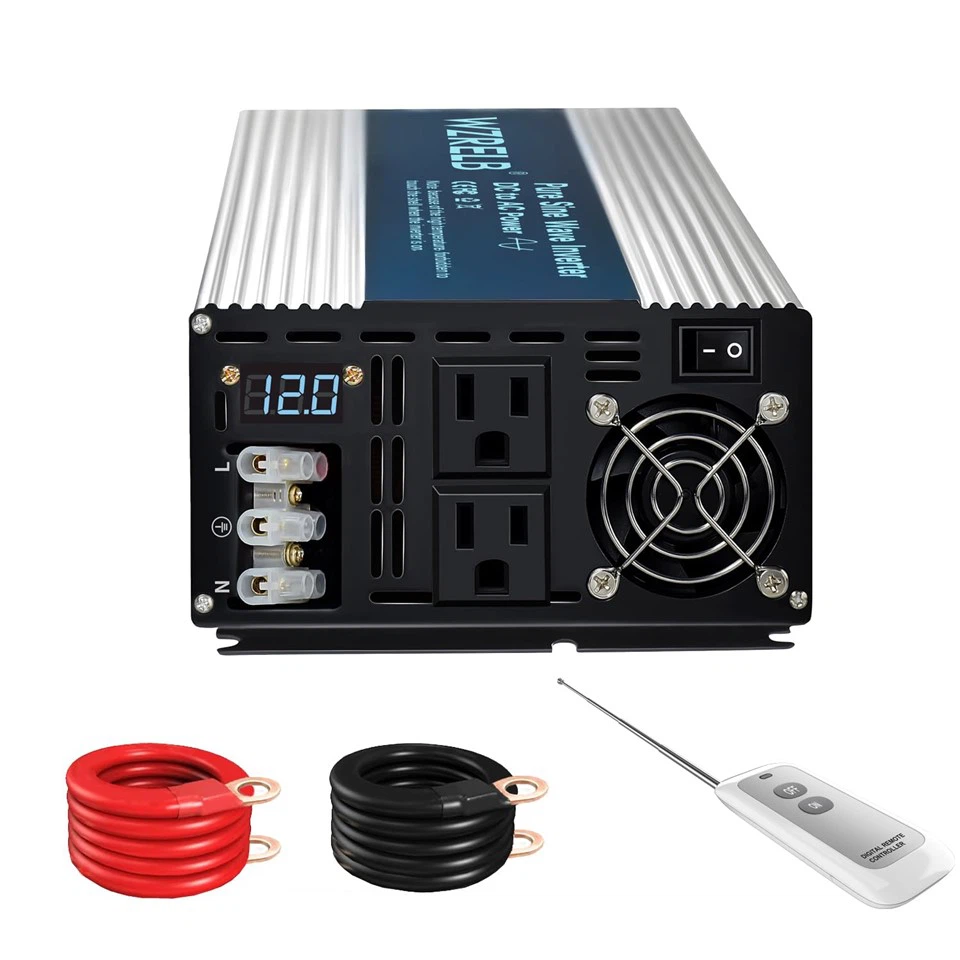

WZRELB SE Series 2500W Pure Sine Wave Inverter with Wireless Remote
The WZRELB SE Series 2500W Pure Sine Wave Inverter with Wireless Remote is designed for users who need clean AC output, stable performance, and easier remote control in mobile, backup, and off-grid power systems. With 2500W continuous power and 5000W surge power, this SE Series inverter converts DC power into stable household-type AC output for larger RV systems, mobile workshops, refrigerators, microwaves, small off-grid cabins, and stronger backup applications. Pure sine wave output helps improve compatibility with electronics, chargers, digital devices, and many appliance loads, while the aluminum housing and intelligent cooling design support reliable daily operation.
[PURE SINE WAVE OUTPUT] - Provides clean and stable AC power for sensitive electronics, chargers, TVs, communication devices, and other daily-use equipment. This helps reduce compatibility issues and supports smoother operation than lower-grade waveform products.
[2500W CONTINUOUS POWER] - Delivers 2500W rated output with 5000W peak surge power, making this inverter suitable for compact higher-power off-grid support in vehicles, RVs, backup systems, and off-grid applications.
[MULTIPLE PROTECTIONS] - Includes low-voltage protection, high-voltage protection, overload protection, over-temperature protection, short-circuit protection, reverse polarity protection, and built-in fuse protection for safer use.
[WIRELESS REMOTE SWITCH] - The included wireless remote makes daily operation more convenient when the inverter is installed in an RV cabinet, vehicle compartment, wall-mount location, or backup power area.
[DURABLE DESIGN] - Uses an all-aluminum shell for durability and heat dissipation, with cooling fan support and soft-start design for practical long-term operation.
Wireless Remote Switch
Remote Switch Range: 100ft in room with walls and doors / 150ft in open area
Battery Note: Battery is not included. Recommend 23A 12V alkaline battery.
Important: The remote only functions when the inverter switch is turned ON.
Core Functions
Ideal Applications
Frequently Asked Questions
Hot Tags: 2500w pure sine wave inverter with wireless remote control, China 2500w pure sine wave inverter with wireless remote control manufacturers, suppliers, factory
| Specification Data | ||
| Model | SE-2500W | |
| Input | DC Voltage | 12V / 24V / 36V / 48V / 60V |
| Voltage Range | 10-15VDC / 20-30VDC / 30-40VDC / 40-60VDC / 45-80VDC | |
| No Load Current Draw | <30W | |
| Efficiency | ≥85% | |
| DC Connector | Cables With Terminals | |
| Output | AC Voltage | 100V / 110V / 120V / 220V / 230V / 240V |
| Continuous Power | 2500W | |
| Surge Power | 5000W | |
| Frequency | 50Hz / 60Hz | |
| Waveform | Pure Sine Wave | |
| AC Regulation | <3% | |
| Protection | Low Voltage Alarm | 10.5V ±0.3V (12V version reference) |
| Low Voltage Shut Down | <10V (12V version reference) | |
| Over Load | Shut Off Output | |
| Over Voltage Shut Down | >15.5V (12V version reference) | |
| Over Thermal | Shut Off Output Automatically | |
| Fuses | Built-in Fuse Protection / Short Circuit Protection | |
| Environment | Working Temperature | 0°C TO 40°C |
| Working Humidity | 20% ~ 90% RH Non-Condensing | |
| Storage Temperature | -10°C TO 70°C | |
| Others | Start | Soft Start |
| Cooling Ways | Cooling Fan, All-Aluminum Housing | |
| Total Harmonic Distortion | THD < 5% | |
| Remote Switch | 100ft in room with walls and doors / 150ft in open area | |
| Remote Battery | 23A 12V Alkaline Battery Recommended (Not Included) | |
| Pack | Machine Size (cm) | 36.5*14.5*7.5 |
| Machine Size (inch) | 14.2*5.7*2.9 | |
| Inner Box Size (cm) | 44*21*14.5 | |
| Inner Box Size (inch) | 17.2*8.2*5.7 | |
| Net / Gross Weight | 2.8KG / 3.2KG | |
| Installation | Remote Note | Remote only functions when the inverter switch is turned ON |
| Hardwire Terminal | Selected versions support hardwire terminal | |
